RAM® Handlebar U-Bolt Base for Rails 0.5″ to 1.25″ in Diameter – B Size

Name: RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size
SKU: RAM-B-231ZU
Price: 664.00 ZAR
Availability: BackOrder

R664,00

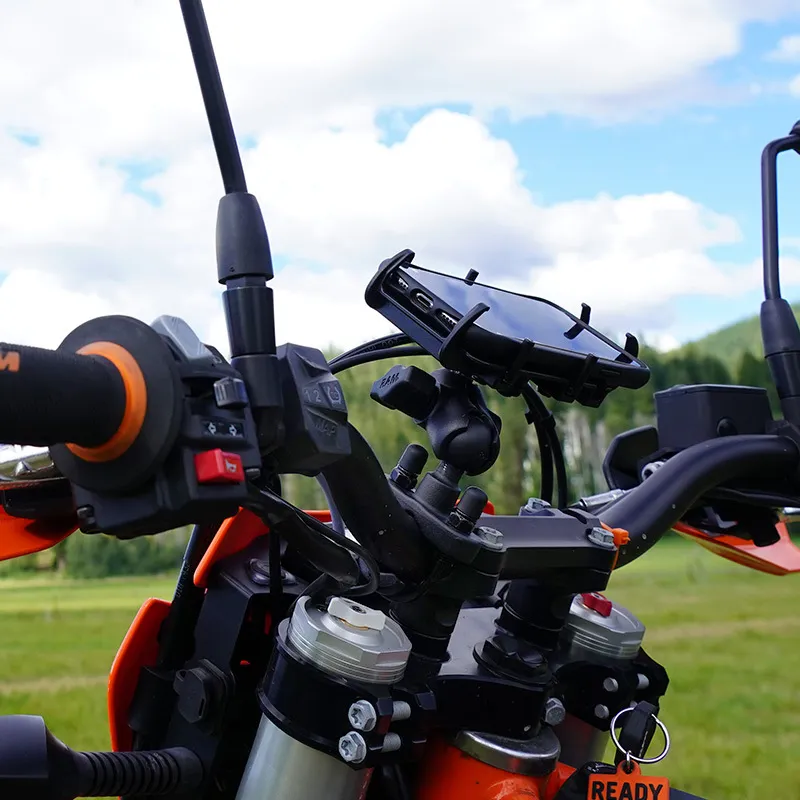

Ideal for motorcycle handlebars, the RAM-B-231ZU consists of a 2.54cm (1″) B size rubber ball attached to a zinc-coated metal U-bolt base. Designed to sit at right angles to the mounting rail, the U-bolt base accommodates rails from 1.27cm (00.5″) to 3.18cm (1.25″) in diameter. Included are black cover caps to be placed over the exposed ends of the U-bolt as well as a composite adapter that can narrow the rail to a minimum width of 1.27cm (00.5″) .

Features

Zinc-coated metal U-bolt base with 2.54cm (1″) rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt
Compatible with any B size RAM® Mounts component; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Available on back-order

Add to wishlist

Information

Product Weight

0.12 kg (0.27 lbs)

Hardware Included

(1) 1/4″ -20 U-Bolt for 1.27cm (0.5″) – 2.54cm (1″) Rails(1) 1/4″ -20 U-Bolt for 2.54cm (1″) – 3.18cm (1.25″) Rails(2) 1/4″ -20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

Clamp Range

1.27cm (0.5″) – 3.18cm (1.25″) diameter

Ball Size

B Size (1″)

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminum

Packaging Type

Poly Bag

Size Guide

BALL SIZES
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1″ Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5″ Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25″ Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38″ Ball

Heavy Monitors

ARM SIZES

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42″ / 6.1468cm	3.73″ / 9.47cm	6.00″ / 15.24cm
B Size	Socket-to-Socket Length	1.75″ / 4.45cm	3.00″ / 7.62cm	5.31″ / 13.49cm
C Size	Overall Length	3.56″ / 9.04cm	5.69″ / 14.45cm	9.13″ / 23.19cm
C Size	Socket-to-Socket Length	2.50″ / 6.35cm	4.66″ / 11.84cm	8.00″ / 20.32cm
D Size	Overall Length	5.10″ / 12.95cm	8.44″ / 21.44	12.98″ / 32.97
D Size	Socket-to-Socket Length	3.60″ / 9.14cm	6.88″ / 17.48cm	11.41″ / 28.98cm
E Size	Overall Length	7.31″ / 18.57cm	12.63″ / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98″ / 12.65cm	9.88″ / 25.10cm	N/A
