RAM® Double Socket Arm

Name: RAM® Double Socket Arm
SKU: RAM-201-B
Price: 1019.00 ZAR
Availability: BackOrder

R1019,00

Overview

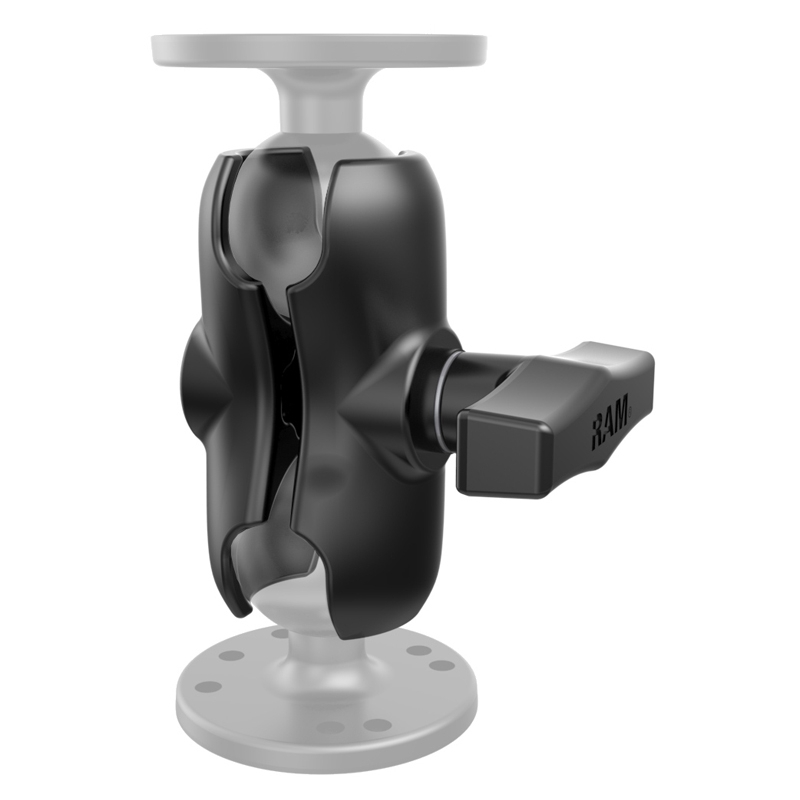

The RAM-201-B, short double socket arm, has a socket at both ends that accommodates 3.81cm (1.5″) ball bases.
A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket
connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.

Features

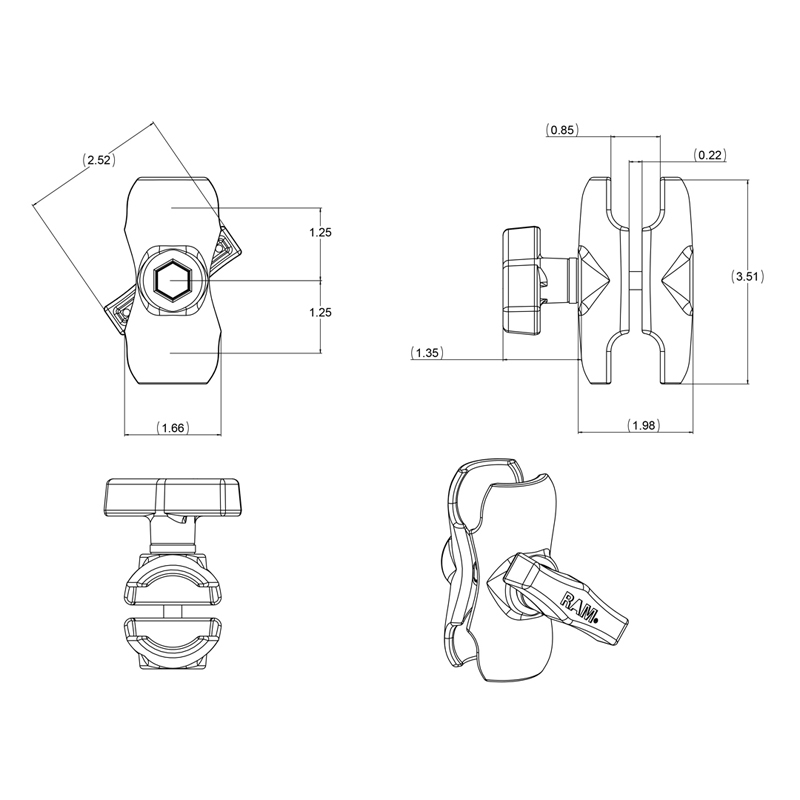

Low-profile design with an overall length of 9.04cm (3.56″) and a socket-to-socket length of 6.35cm (2.5″)
Attaches to any C size RAM®; ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM®; mounting system
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Available on back-order

Add to wishlist

Information

Product Dimensions

Overall Length: 9.04cm (3.56″)

Socket-to-Socket Length

6.35cm (2.5″)

Ball Size

C Size ( 3.81cm (1.5″) )

Weight Capacity

Standard Use: 1.81 kg (4 lbs)
Heavy-Duty Use: 1.36 kg (3 lbs)

Materials

Marine-grade aluminum

Packaging Type

Retail Bag

Weight

0.27 kg (0.6 lbs) .

Size Guide

BALL SIZES
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1″ Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5″ Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25″ Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38″ Ball

Heavy Monitors

ARM SIZES

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42″ / 6.1468cm	3.73″ / 9.47cm	6.00″ / 15.24cm
B Size	Socket-to-Socket Length	1.75″ / 4.45cm	3.00″ / 7.62cm	5.31″ / 13.49cm
C Size	Overall Length	3.56″ / 9.04cm	5.69″ / 14.45cm	9.13″ / 23.19cm
C Size	Socket-to-Socket Length	2.50″ / 6.35cm	4.66″ / 11.84cm	8.00″ / 20.32cm
D Size	Overall Length	5.10″ / 12.95cm	8.44″ / 21.44	12.98″ / 32.97
D Size	Socket-to-Socket Length	3.60″ / 9.14cm	6.88″ / 17.48cm	11.41″ / 28.98cm
E Size	Overall Length	7.31″ / 18.57cm	12.63″ / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98″ / 12.65cm	9.88″ / 25.10cm	N/A
