RAM® Double Socket Arm – B Size Short

Name: RAM® Double Socket Arm - B Size Short
SKU: RAM-B-201U-A
Price: 589.00 ZAR
Availability: BackOrder

R589,00

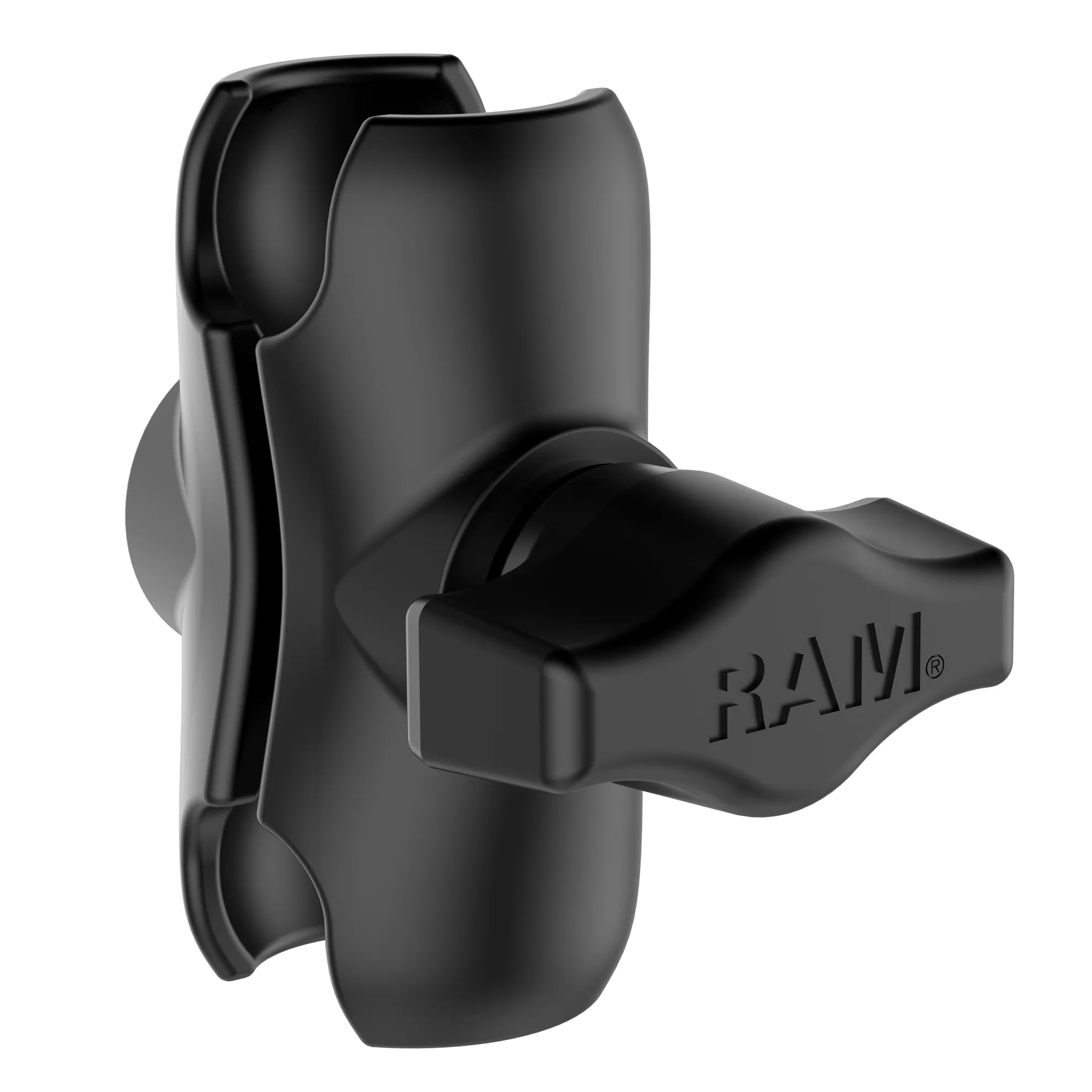

The RAM Short Double Socket Arm (RAM-B-201U-A) is a rugged short-length double socket arm compatible with B size rubber ball adapters and bases. With an overall length 6.15cm (2.42″) , this is the lowest profile RAM double socket arm size. A single spring inside the arm pushes the two halves open as the arm is loosened, allowing for easy rotation of the ball and socket connection at both ends. This ball-and-socket technology allows for near-infinite adjustment and perfect viewing angles when used with RAM rubber ball bases.

Features

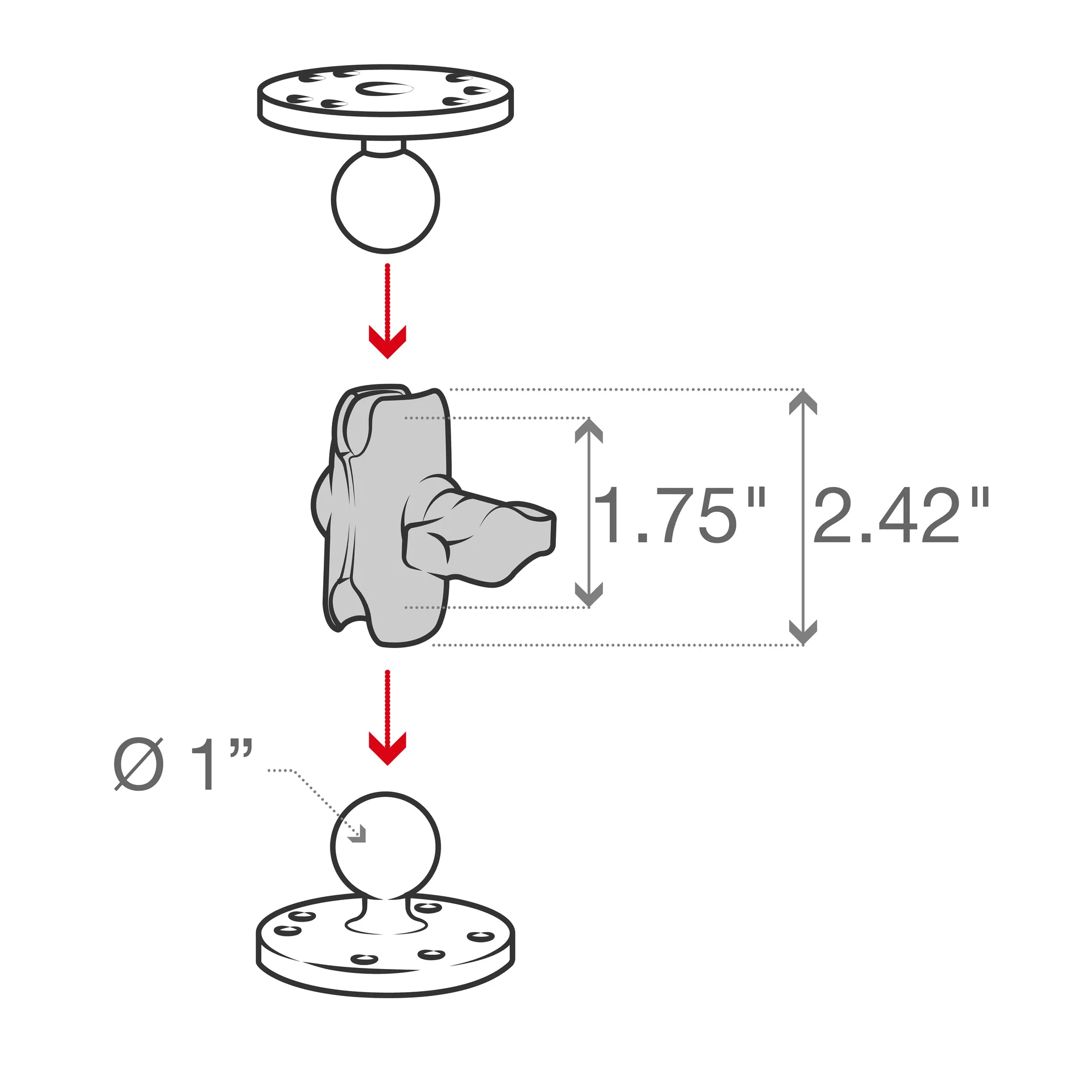

Low-profile design with an overall length of 6.15cm (2.42″) and socket-to-socket length of 4.45cm (1.75″)
Attaches to any B size RAM® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Available on back-order

Add to wishlist

Information

Product Weight

0.10 kg (0.22 lbs)

Product Dimensions

Overall Length: 6.15cm (2.42″)

Socket To Socket Length

4.45cm (1.75″)

Ball Size

B Size (1″)

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminum

Packaging Type

Poly Bag

Size Guide

BALL SIZES
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1″ Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5″ Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25″ Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38″ Ball

Heavy Monitors

ARM SIZES

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42″ / 6.1468cm	3.73″ / 9.47cm	6.00″ / 15.24cm
B Size	Socket-to-Socket Length	1.75″ / 4.45cm	3.00″ / 7.62cm	5.31″ / 13.49cm
C Size	Overall Length	3.56″ / 9.04cm	5.69″ / 14.45cm	9.13″ / 23.19cm
C Size	Socket-to-Socket Length	2.50″ / 6.35cm	4.66″ / 11.84cm	8.00″ / 20.32cm
D Size	Overall Length	5.10″ / 12.95cm	8.44″ / 21.44	12.98″ / 32.97
D Size	Socket-to-Socket Length	3.60″ / 9.14cm	6.88″ / 17.48cm	11.41″ / 28.98cm
E Size	Overall Length	7.31″ / 18.57cm	12.63″ / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98″ / 12.65cm	9.88″ / 25.10cm	N/A
