RAM® Ball Adapter with AMPS Plate – B Size

Name: RAM® Ball Adapter with AMPS Plate - B Size
SKU: RAM-B-347U
Price: 339.00 ZAR
Availability: BackOrder

R339,00

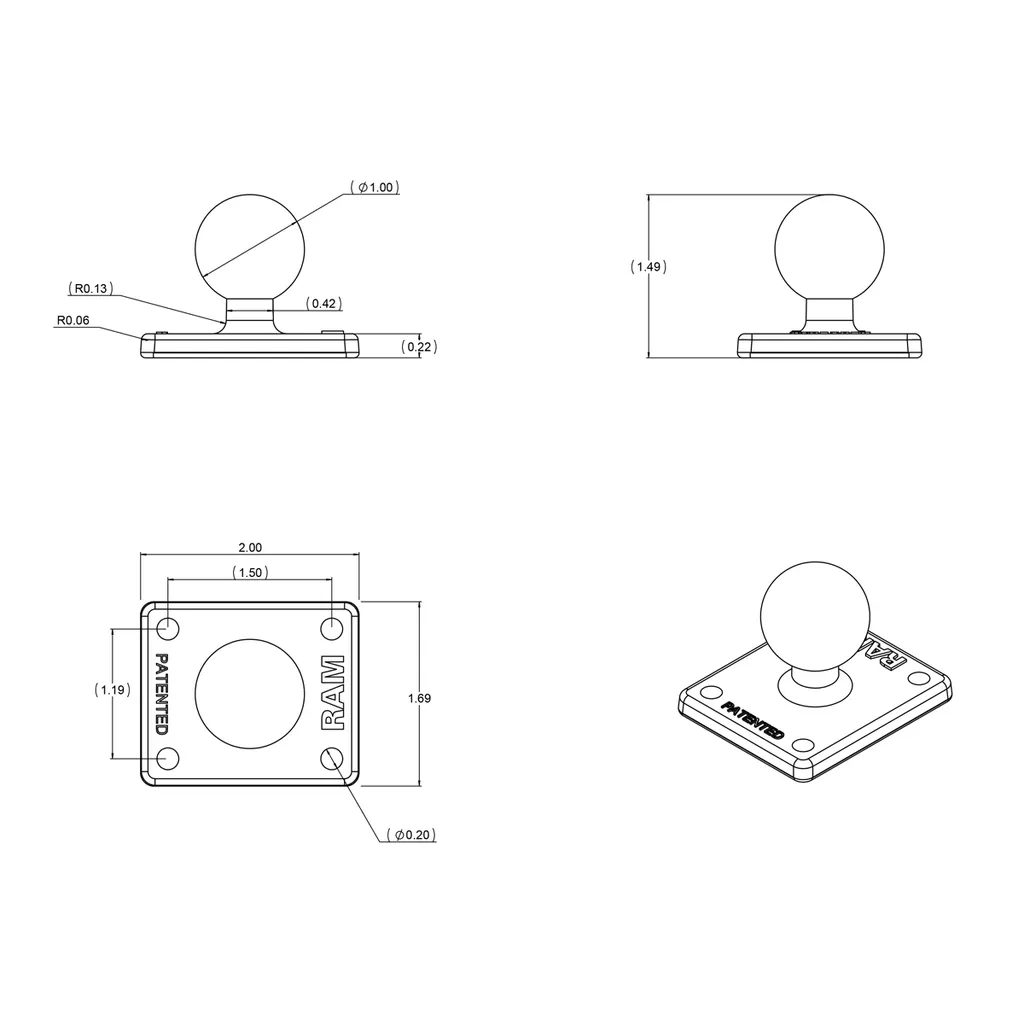

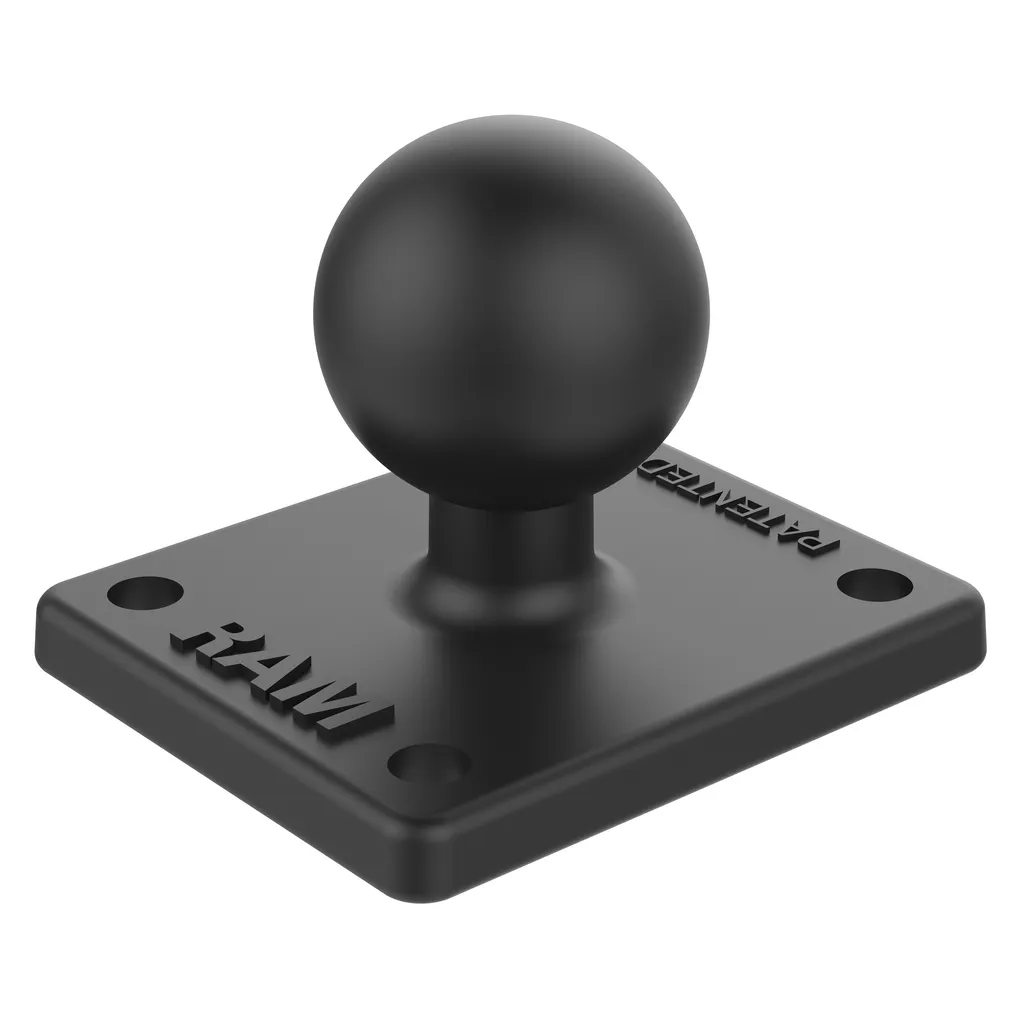

The RAM-B-347U base consists of a B size 2.54cm (1″) diameter rubber ball connected to a 5.08 cm (2″) X 4.32 cm (1.7″) square base. The base has four pre-drilled holes at each corner, using the universal AMPS hole pattern.

Features

5.08cm (2″) x 4.32cm (1.7″) square ball base features industry-standard AMPS hole pattern with four pre-drilled holes at each corner
Included B size 2.54cm (1″) RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Available on back-order

Add to wishlist

Information

Product Weight

0.06 kg (0.13 lbs)

Hole Pattern

4-Hole AMPS: 3.00 cm (1.181″) X 3.80 cm (1.496″)

Thread Pitch

1/4″ -20

Plate Size

5.08cm (2″) X 4.32cm (1.7″)

Ball Size

B Size (1″)

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminum

Packaging Type

Poly Bag

Size Guide

BALL SIZES
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1″ Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5″ Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25″ Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38″ Ball

Heavy Monitors

ARM SIZES

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42″ / 6.1468cm	3.73″ / 9.47cm	6.00″ / 15.24cm
B Size	Socket-to-Socket Length	1.75″ / 4.45cm	3.00″ / 7.62cm	5.31″ / 13.49cm
C Size	Overall Length	3.56″ / 9.04cm	5.69″ / 14.45cm	9.13″ / 23.19cm
C Size	Socket-to-Socket Length	2.50″ / 6.35cm	4.66″ / 11.84cm	8.00″ / 20.32cm
D Size	Overall Length	5.10″ / 12.95cm	8.44″ / 21.44	12.98″ / 32.97
D Size	Socket-to-Socket Length	3.60″ / 9.14cm	6.88″ / 17.48cm	11.41″ / 28.98cm
E Size	Overall Length	7.31″ / 18.57cm	12.63″ / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98″ / 12.65cm	9.88″ / 25.10cm	N/A
